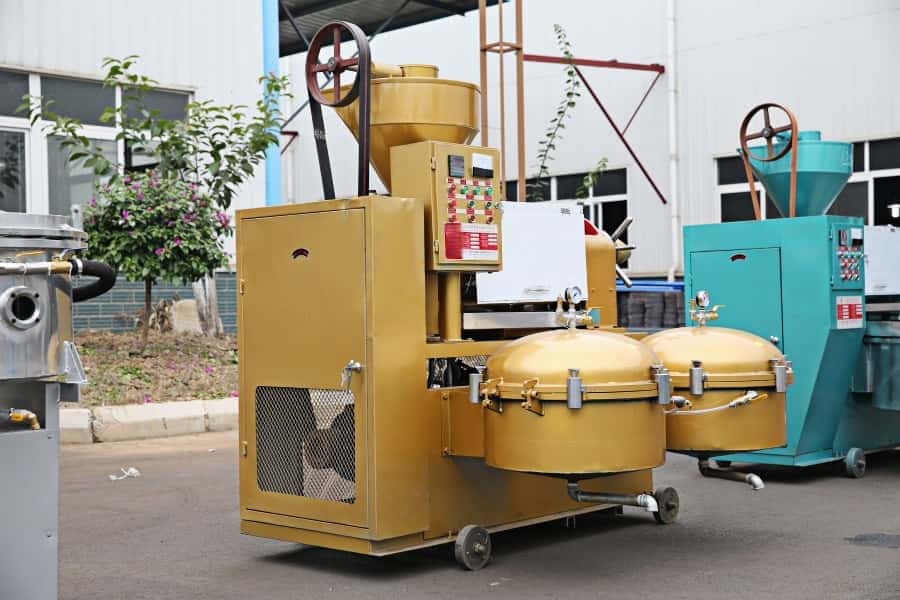

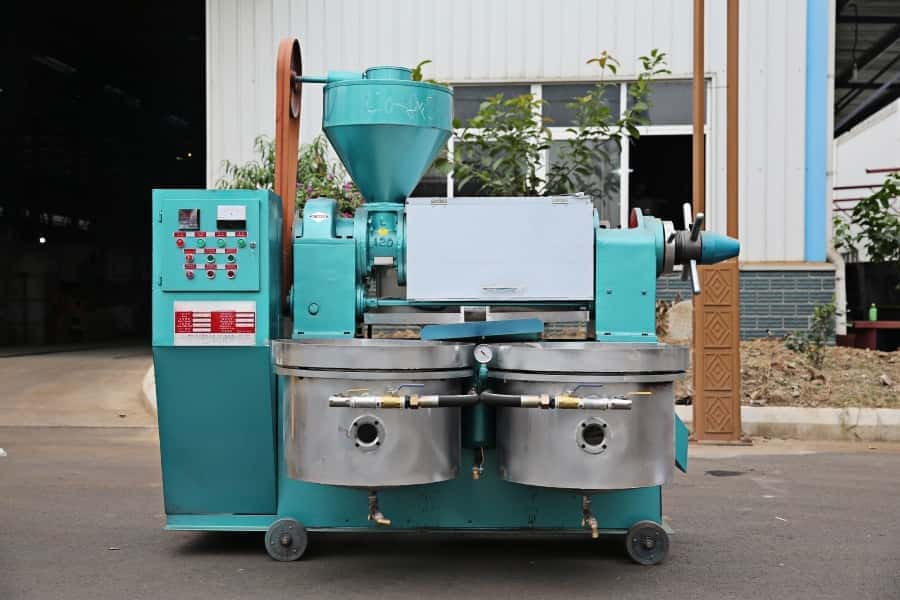

Automatic Combined Oil Press with Oil Filter Introduction

This series of automatic temperature-controlled, precision-filtering combined oil presses is a new product developed based on a single unit to meet market demand. This oil press features an automatic cage heating function, replacing the traditional press method of using a caked-slag press. This shortens preparation time, reduces energy consumption, and reduces machine wear. This system maintains the cage temperature during pauses in oil extraction. Furthermore, this oil press incorporates a filtration function, with crude oil flowing from the cage directly filtered through an air filter. This new type of filtration equipment utilizes compressed air as the filtration power, offering high filtration capacity and overcoming the limitations of vacuum filters, resulting in high filtration precision. This compact structure, minimal footprint, and labor-saving design make it an ideal equipment for small and medium-sized refineries and edible oil processing companies.

Automatic Combined Oil Press with Oil Filter Working Principle

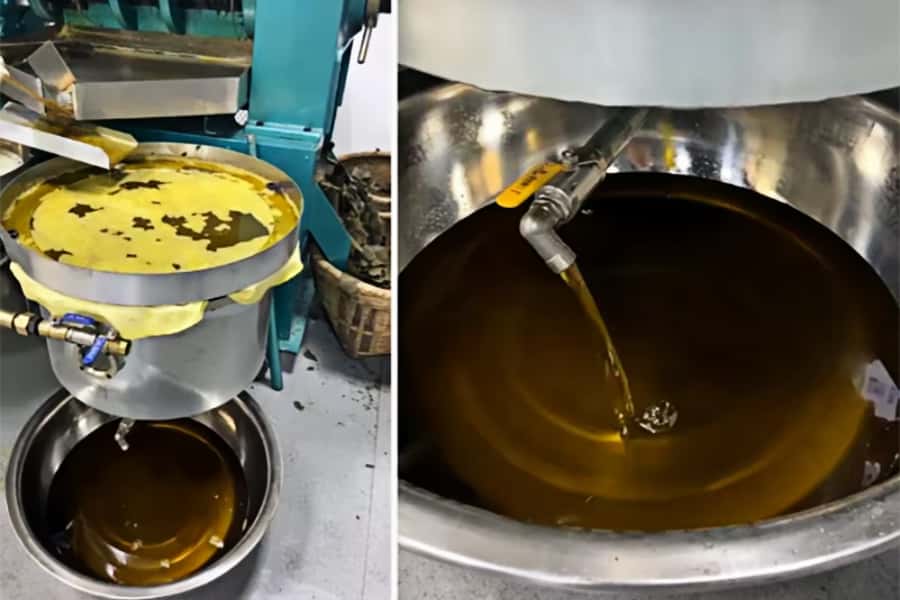

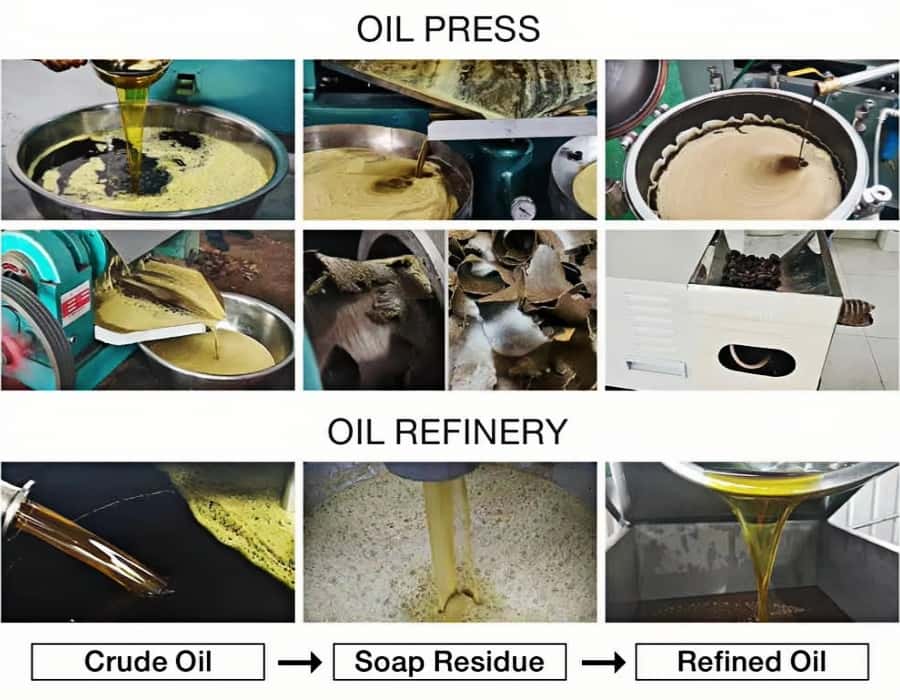

After transferred by the triangle belt and decelerated through the deceleration part, the electromotor drives the spiral. The oil plants falls to the first section of the spirals through the feeding part and carried forward toward the direction for cake out along with the rotating squeeze spirals. As the space between the squeeze spirals are getting smaller, the oil plants are squeezed and the pressure in the press cage is getting bigger. The oil plants fractions with each other as well as the spirals and squeeze loops. During this process, the oil plants are smashed and generate big amount of heat, the tissue cells are destroyed and the oil is separated from the oil plants and discharged from the squeeze bars and the oil grooves on the squeeze loops. This is the whole squeezing process. The oil plants turns to be cake containing low oil after the oil is extracted out and discharged in thin slices from the circle space between the cake adjuster and the loop for cake out. The oil extracted from the oil plants flows to the vats through oil pipe, close the lid and fasten the clips, fasten the bolts on the clips, then close the valves for air out, open the air compressor and open the valves for air in. The pressure in the vat gets bigger. The oil is filtrated through the filtration cloth under the air pressure and discharged from the bottom of the vat; the residue is isolated on the filtration cloth. Use two vats alternatively so to ensure continuous working.

Various Size of Oil Presser Can be Choosed

Model	Precision filtration combined oil press YZLXQ10-6/8/9	Precision filtration combined oil press YZLXQ120	Precision filtration combined oil press YZLXQ130	Precision filtration combined oil press YZLXQ140
Processing capacity(t/24h)	4.5	6.5	8	9~11
Oil content of dry cakes(%)	≤7.8	≤7.6	≤7.6	≤7.6
Spiral axes rotate speed(r/min)	32-40	32-44	32-46	32-46
Oil press power(kw)	11	15	18.5	18.5 or 22
Power for filtration(kw)	1.5	1.5	1.5	1.5
Temperature control power(kw)	≥2.4	≥3.2	≥3.0	≥3.0
Measurement(mm)(L×W×H)	1890×1520×1915	1948×1522×1915	2120×1610×2000	2120×1610×2000
Weight(kg)	1075	1115	1320	1360
