Commercial Freeze Dryer
Commercial Freeze Dryer

Commercial Freeze Dryer

This is a multi-functional commercial vacuum freeze dryer, primarily used to freeze-dry fruits, vegetables, pet food, biological samples, and other materials through a "freeze-sublimation dehydration" process, preserving the materials' nutrients, flavor, and shape.

  • Application:

  • Capacity:

Inquiry now


  • Product Detail

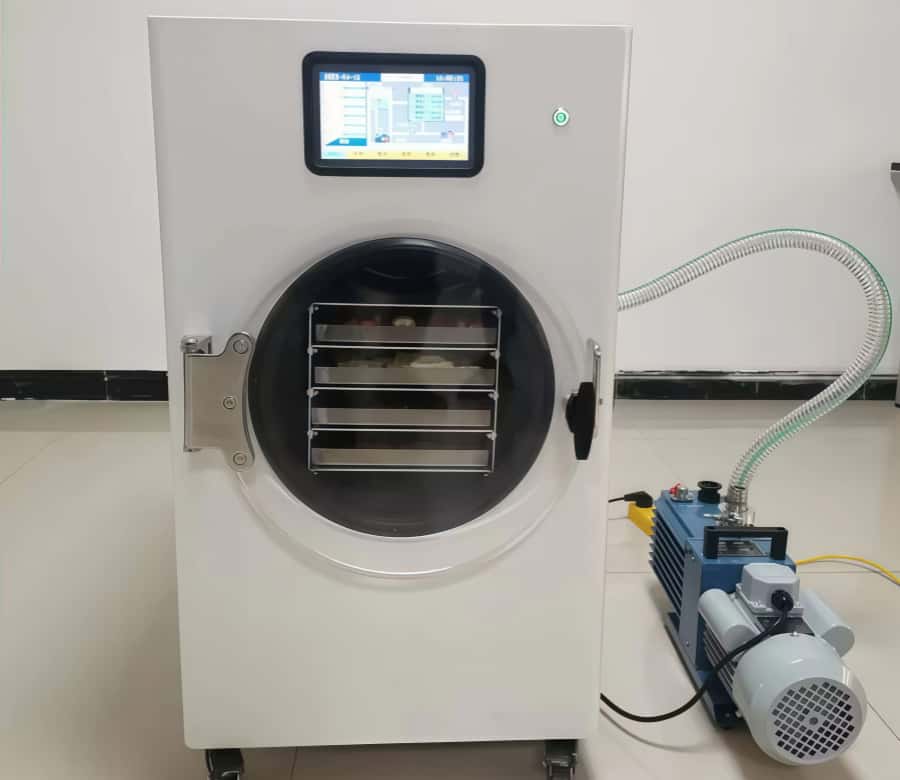

Commercial Freeze Dryer

This is a multi-functional commercial vacuum freeze dryer, primarily used to freeze dry fruits, vegetables, pet food, biological samples, and other materials through a "freeze-sublimation dehydration" process, preserving the materials' nutrients, flavor, and shape.



Commercial Freeze Dryer Advantages

1. Utilizing vacuum freeze-sublimation technology, it maximizes the preservation of nutrients, color, and shape. For example, freeze-dried fruits retain the taste and nutrition of fresh fruit, and the activity of biological samples is also well preserved.

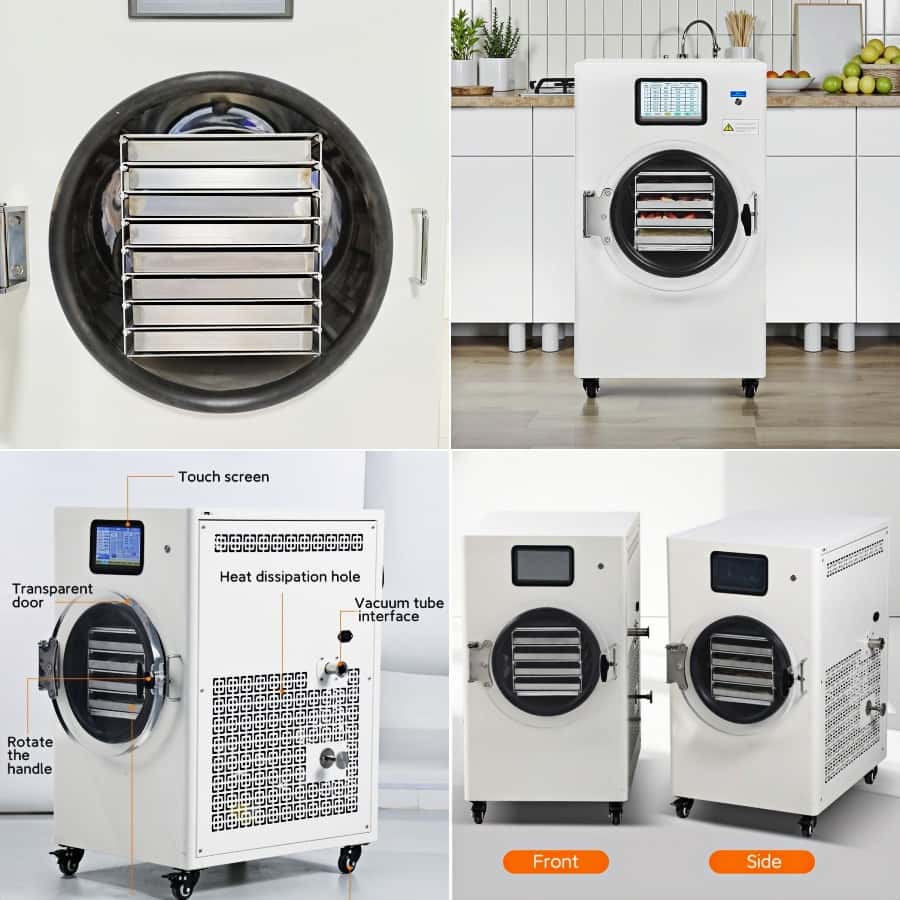

2. Equipped with a touchscreen display, it allows for intuitive setting and monitoring of freeze-drying parameters, making it easy to operate and suitable for research and small-scale production scenarios.
3. The main body and vacuum pump are designed separately, facilitating maintenance and relocation; the transparent chamber allows for real-time observation of the freeze-drying process.
4. It can be used for food freeze-drying processing as well as meeting the drying needs of biopharmaceutical and scientific research experiments, offering multiple uses in one machine.

Detailed Parameters

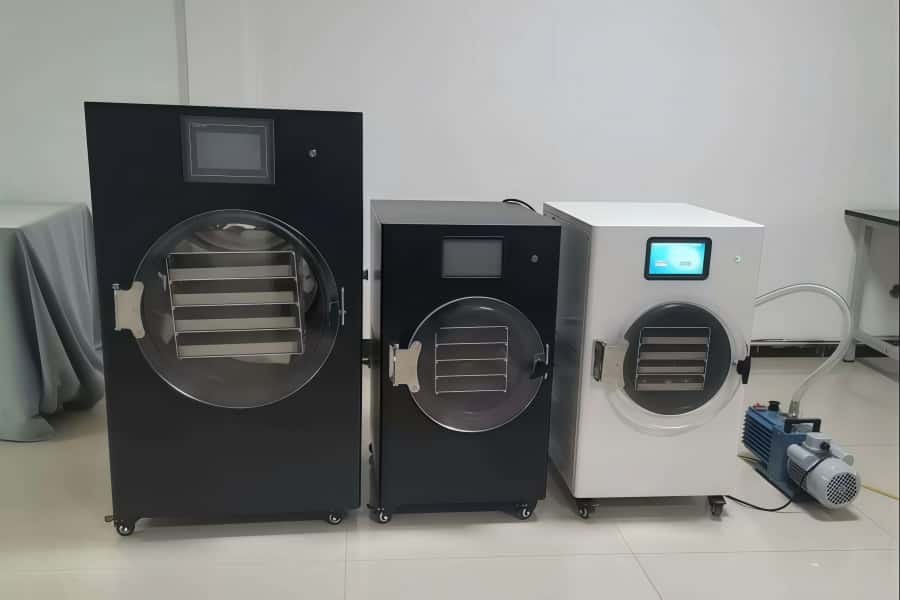

Model HFD-1 HFD-4 HFD-5 HFD-8 HFD-15
Number of trays 3 pieces 4 pieces 5 pieces 8 pieces 7 pieces
Freeze dried area 0.1㎡ 0.4㎡ 0.5㎡ 0.92㎡ 1.45㎡
Minimum temperature -50℃ -50℃ -50℃ -50℃ -60℃
Processing capacity 1-2 KG/batch 4-6KG/batch 6-8KG/batch 10-12KG/batch 18-12KG/batch
Ultimate vacuum Below 2Pa
Tray size 145*275mm 200*425mm 200*425mm 265*430mm 265*780mm
Material tray spacing 43mm 45mm 70mm 38mm 43mm
Pumping speed 2L/S 2L/S 2L/S 4L/S 4L/S
Water harvesting ability 3kg/24h 4kg/24h 6kg/24h 10kg/24h 18kg/24h
Operating noise ≤60dB
Voltage 220V/50HZ(Customizable 110V or 380V)
Power 1100W 1500W 1500W 2500W 3500W
N.W. 73kg 84kg 84kg 130kg 186kg
G.W. 113kg 139kg 139kg 203kg 281kg
Machine size(mm) 450*500*825 500*640*900 500*640*900 680*640*1180 680*990*1180
Package size(mm)                 570*680*1170 630*840*1260 630*840*1260 820*800*1540 820*1170*1600







Application Scenarios And Effects of Freeze Dryers
