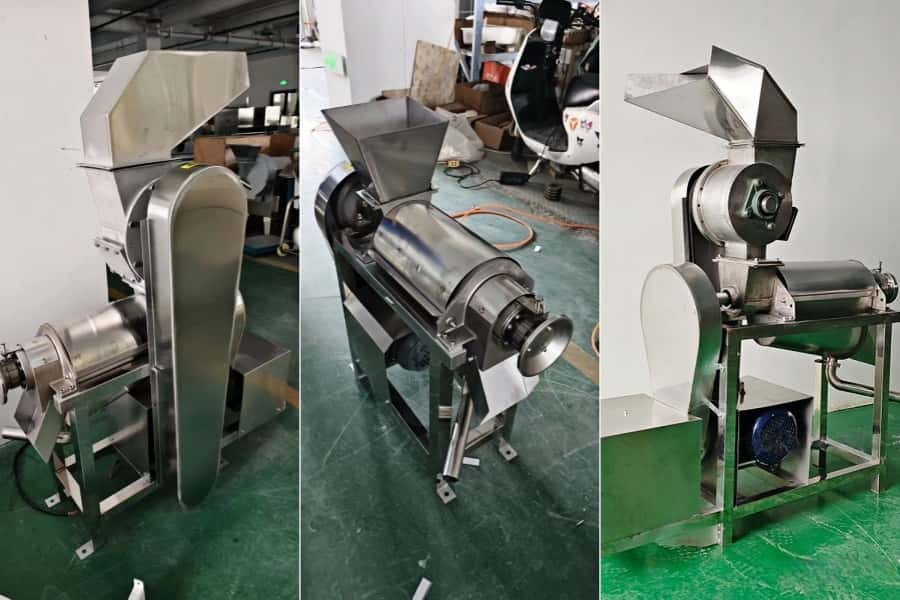

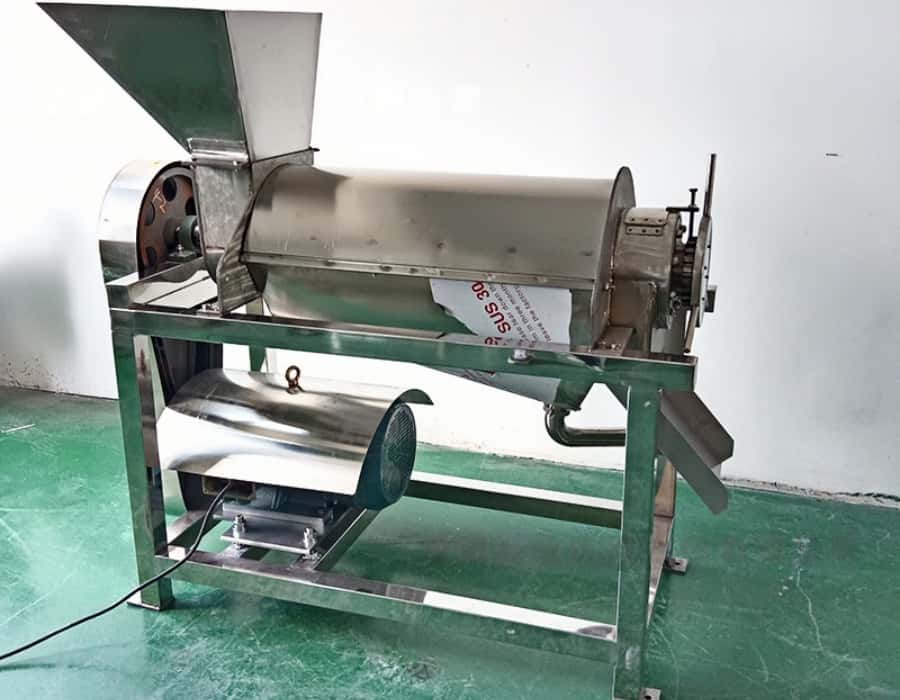

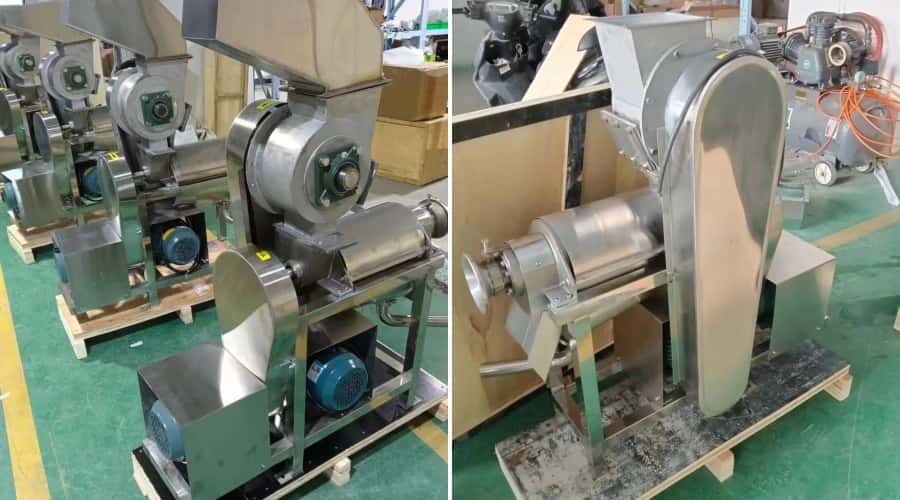

Screw Juicer Machine

The screw juicer machine is mainly used for squeezing and extracting juice from berries, pome fruits, and root fruits and vegetables. It can also be used for squeezing and extracting juice from stone fruits after core removal and softening.The screw juicer extractor machine is widely used for kinds of fruits and vegetables, such as the carrot, celery, spinach, tomatoes, pineapple, pear, apple, orange and so on. It is widely used in the fruit processing industry, food and beverage processing factory.

Screw Juicer Machine Structure

The machine is mainly composed of motor, frame, front support, pressing screw, filter combination device, juice container, rear support, slag scraper and slag discharging assembly and other components. The left end of the pressing screw spindle is supported in the rolling bearing, and the right end is supported in the handwheel bearing seat. The motor drives the machine through a pair of triangle pulleys.

Screw Juicer Machine Working Principle

The main component of the machine is the pressing screw. The bottom diameter of the pressing screw gradually increases and the pitch gradually decreases along the direction of the slag outlet. When the material is pushed by the screw, the volume of the spiral cavity on the pressing screw is sequentially reduced, forming a pressure on the material. press. The rotation direction of the spiral spindle is clockwise when viewed from the feed hopper to the slag discharge chute. When the material enters the feed hopper, it is pressed by the advancement of the pressing screw. The squeezed fruit and vegetable juice flows into the juice container at the bottom through the filter, while the fruit and vegetable residue passes between the pressing screw and the tapered part of the pressure regulating head. The gap formed between them is discharged. Changing the size of the slag discharge gap can change the juice yield. However, if the gap is too small, under the strong squeezing of the pressing screw, some of the particles in the slag may be squeezed out through the filter together with the juice. Although the juice output increases, the juice will not The quality is relatively reduced (the pulp and pulp fiber in the juice are relatively increased). The size of the slag discharge gap should be determined according to the customer's specific production process requirements.

Various Size of Screw Juicer Machine Can be Choosed

Model	RXJP-500	RXJP-500 (With crusher)	RXJP-1000 (With crusher)	RXJP-2000 (With crusher)
Processing capacity	500Kg/hour	500Kg/hour	1000Kg/hour	2000~3000 Kg/hour
Power	1.5KW	3KW	4.5KW	11Kw+4Kw
Voltage	380v/50Hz (Can be customized)
Machine material	304 Stainless steel
Machine weight	90kg	165kg	210kg	650kg
Machine size	850350900mm	10904401320mm	13505001450mm	15509002150mm
Working priceple	Screw mechanical pressing
Function	Used for various fruits and vegetable juice pressing. Such as orange, pineapple, pear, dragon fruits, watermelon, ginger, celery, carrots, etc.
Note	before put fruits or vegetables into screw juicing machine, the raw materials shall be cutted or crushed into smaller size for better juicing effect
