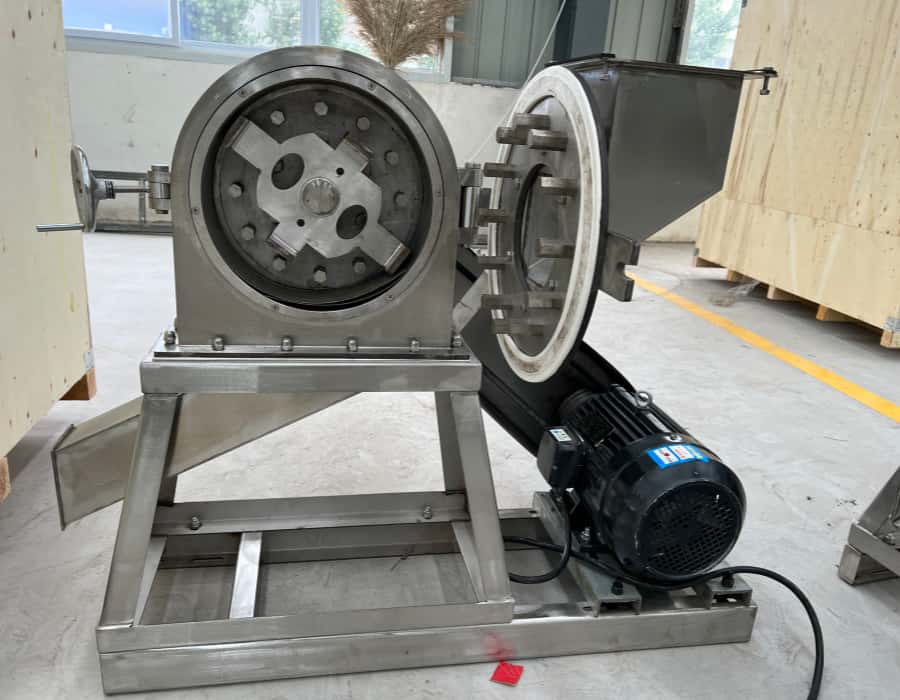

Grinding Machine

This unit is suitable for pharmaceutical, food, chemical and other industries. The Pulverizer mill is widely used in chemical, pharmaceutical, food and other industries, suitable for crushing spices (fennel, turmeric, chili, pepper, chickpea, cinnamon, etc.), tea leaf, moringa leaf, coffee beans, salt, sugar,chemical raw material etc.With air-cooled, no screen and other properties, especially suitable for crushing fibrous and with a certain amount of grease materials.

Grinding Machine Working Principle

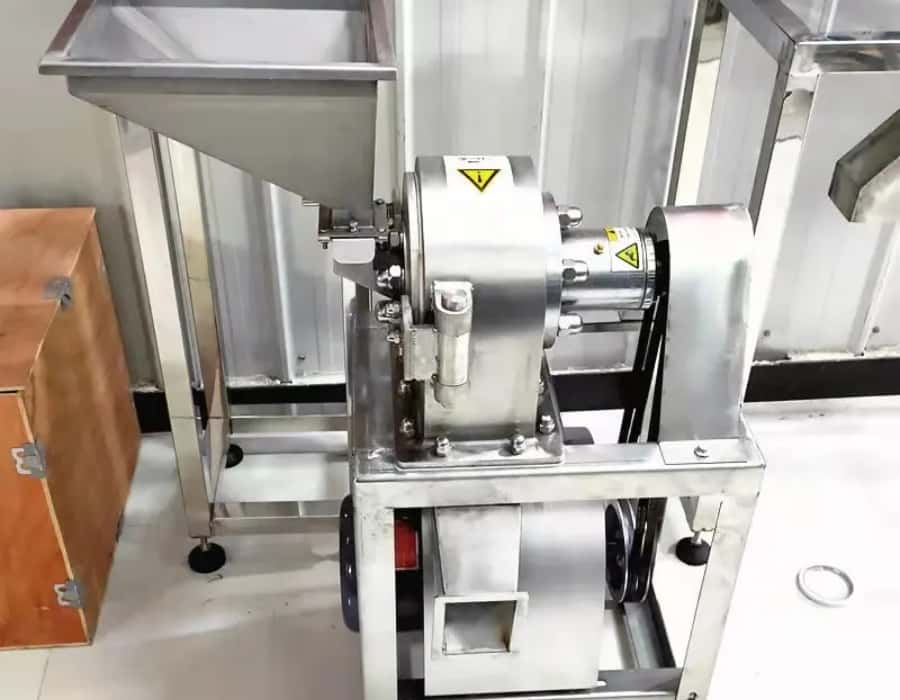

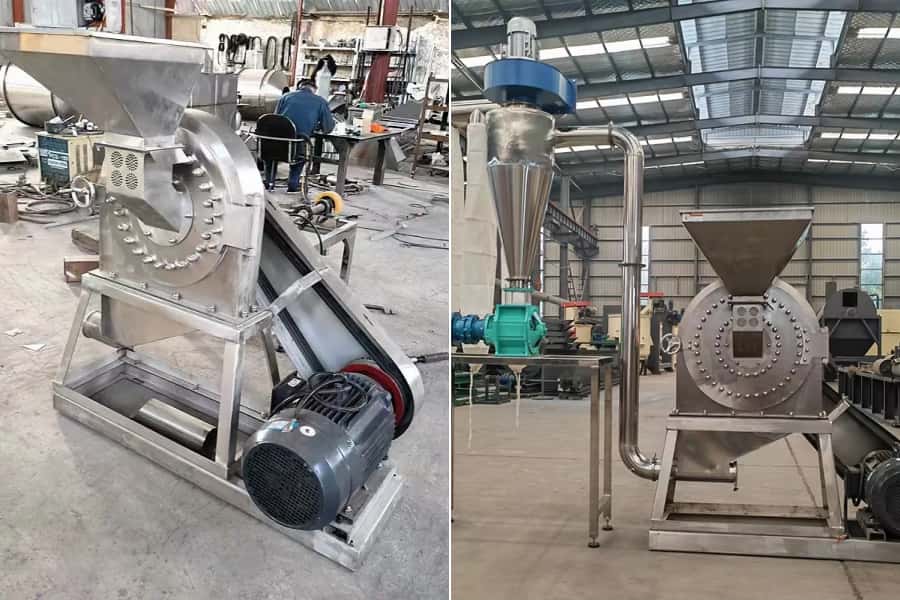

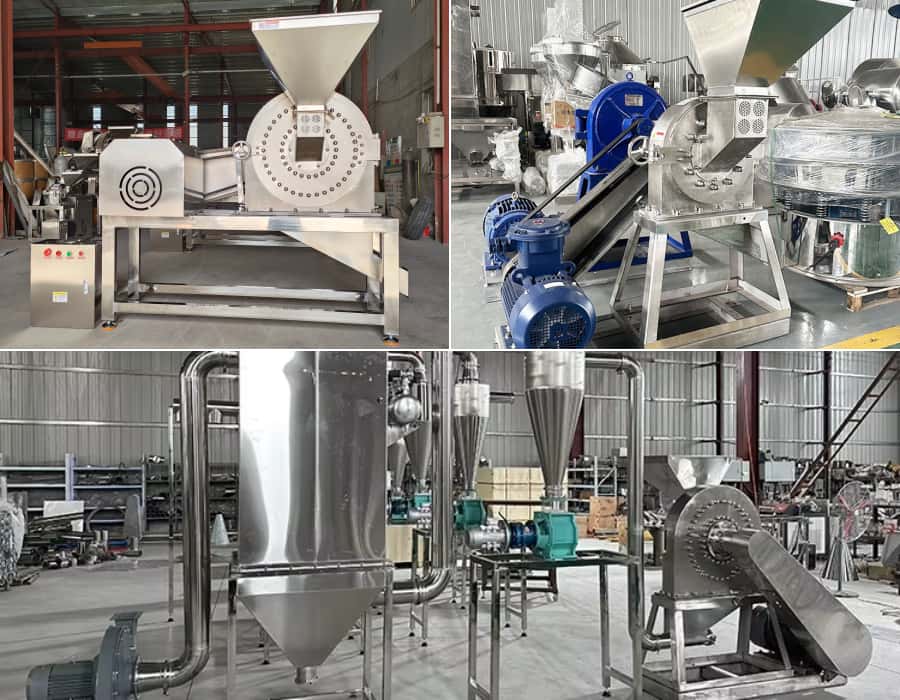

The machine has a crushing host, cyclone separator, pulse dust box and other components. Materials from the hopper into the crushing chamber, through the high-speed rotation of the hammer for crushing, crushing fineness can be adjusted grading knife and grading disc distance to achieve the desired fineness, crushed materials by the rotary centrifugal force and the role of the induced draft fan into the cyclone, and then, through the shutdown of the blower discharged, the dust into the impulse dust box, filtered by the filter cartridge after recycling. The machine is designed according to ‘GMP’ standard, the whole machine is made of stainless steel, no dust flying in the crushing process.

Grinding Machine Features

1. Simple structure, easy assembly and disassembly of crushing chamber, easy to clean, and can be replaced after tooth claw wear.
2. Smooth operation, low noise, small vibration.
3. Simple operation, replacing the screen can control the size of the particle size. Friendly tips for water cooling and explosion-proof devices.

Various Size of Grinding Machine Can be Choosed

Model	200 Ginder mill	300 Ginder mill	400 Ginder mill	500 Ginder mill	600 Ginder mill	800 Ginder mill with water cooling
Processing capacity	10-100 Kg/Hour	30-200Kg/Hour	60-400 Kg/Hour	100-600Kg/Hou	200-900 Kg/Hour	300-1200Kg/Hour
Power	3Kw	4Kw	7.5Kw	11Kw	15Kw	22Kw
Voltage	380V (Can be customized)
Rotary speed	7200 r/m	5700 r/m	4500 r/m	3900 r/m	3200 r/m	2800 r/m
Ribbon Diameter	200 mm	295 mm	370 mm	430 mm	510 mm	650 mm
Material	304 stainless steel
Machine weight	85Kg	120Kg	200Kg	260Kg	300Kg	340Kg
Machine size	700400980 mm	8505201220mm	11508501250mm	12009501300mm	12509501350mm	13009501400mm
Wooden case packed weight				300Kg
Wooden case packed size				13009501400mm
