Product Detail

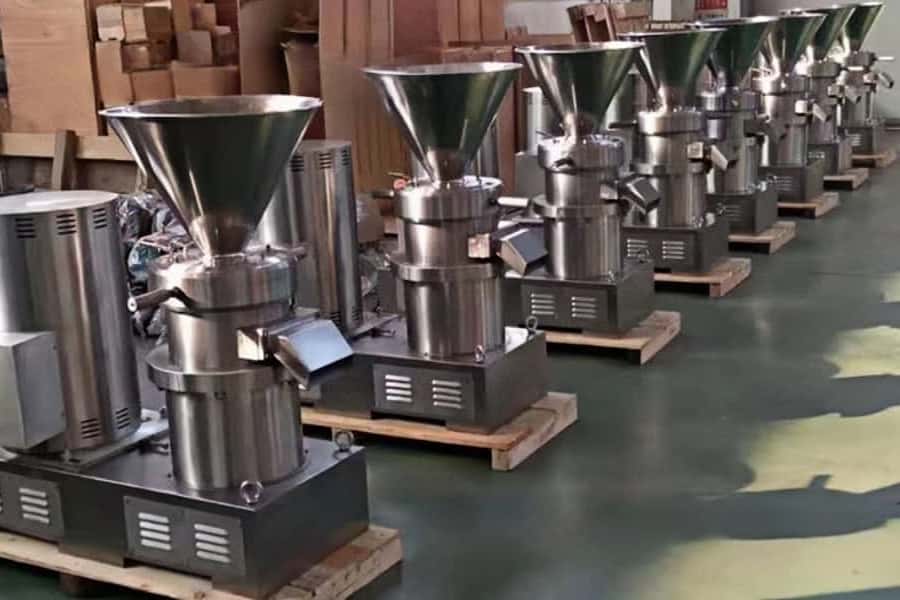

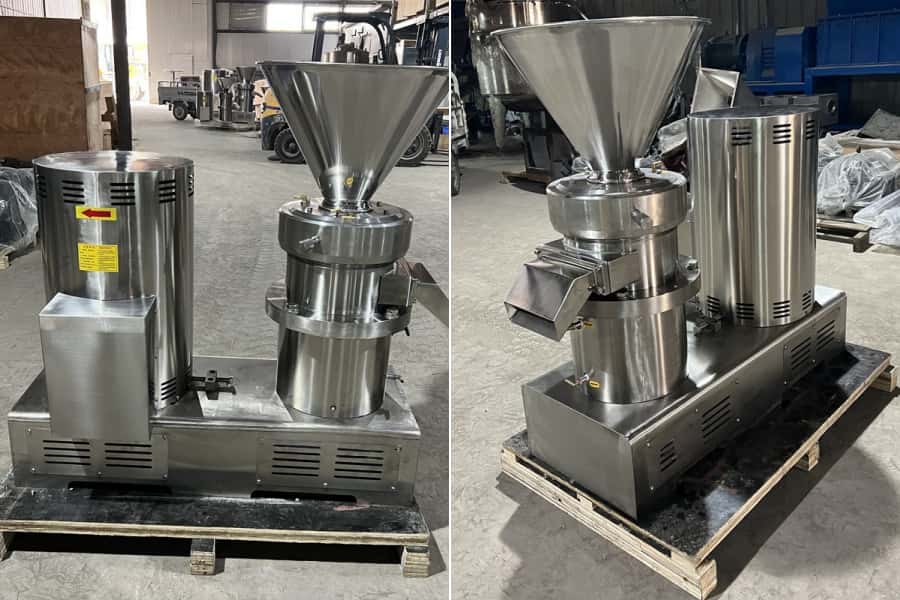

Colloid mill

Colloid mill consists of stainless steel, semi-stainless steel colloid mill, the basic principle of colloid mill is fluid or semi-fluid materials through the high-speed relative linkage between the fixed teeth and moving teeth, so that the material is subjected to strong shear, friction and high-frequency vibration and other roles, effectively crushed, emulsified, homogenized, warmed and combined, so as to obtain a satisfactory fine processing of the product.

Colloid mill Working Principle

The basic working principle of colloid mill is shearing, grinding and high-speed mixing. Grinding relies on the relative motion of two tooth-shaped surfaces, one of which rotates at high speed, the other is stationary, so that the material through the teeth between the surface is subjected to great shear and friction, and at the same time in the high-frequency vibration, high-speed vortex, and other complex forces to make the material effectively dispersed, floatation, pulverization, homogenization. Colloid mill consists of three parts: grinding head, base transmission parts and motor. The parts in contact with the material are all made of high quality stainless steel, and the static and dynamic grinding discs are the key parts of the machine. According to the different nature of the material to be processed, the teeth of the grinding discs are different, but the material is made of stainless steel tools. The motor is specially designed according to the needs of colloid mill, and a water retaining disk is installed in the flange end cover of the motor to prevent leakage.

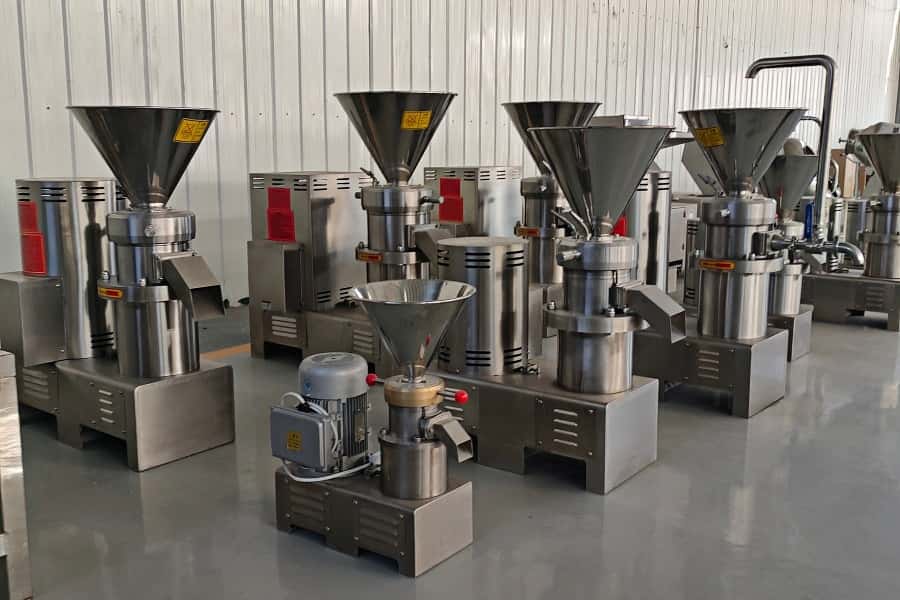

Various Size of Colloid mill Can be Choosed

Model	GN-50	GN-80	GN-110	GN-130	GN-160	GN-180	GN-200	GN-220	GN-240
Capacity(kg/h)	20-40	50-80	150-200	200-400	300-700	600-1000	800-1500	1000-2000	2500-4000
Material processing fineness	2-50 microns
Motor power	1.5kw	4kw	7.5kw	11kw	15kw	18.5kw	22kw	30kw	37kw
Motor speed(Min/turns)	2800	2890	2890	2890	2890	2890	2890	2890	2890
Grinding head material	9Cr18 Special steel
Grinding head tooth shape	C4
Grinding head diameter	50mm	80mm	110mm	130mm	160mm	180mm	200mm	220mm	240mm
Machine size(cm)	552760	703592	7540 95	10045110	10045110	10045115	12065140	12570140	14075140
Machine weight(kg)	50kg	150kg	180kg	285kg	315kg	350kg	450kg	800kg	1200kg
